Detailed description

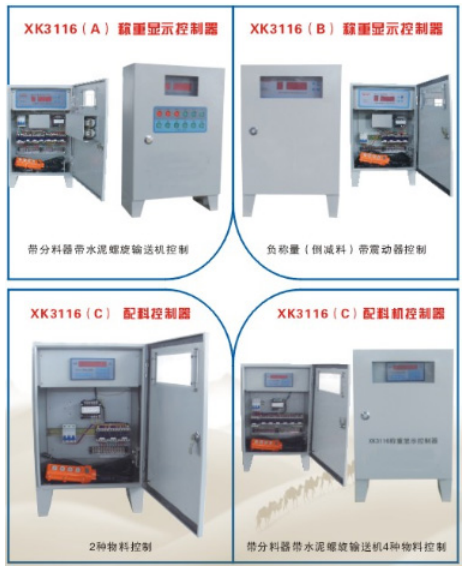

[product name] weighing display controller

[application] batching scale, filling scale, packing scale, concrete mixing station, etc

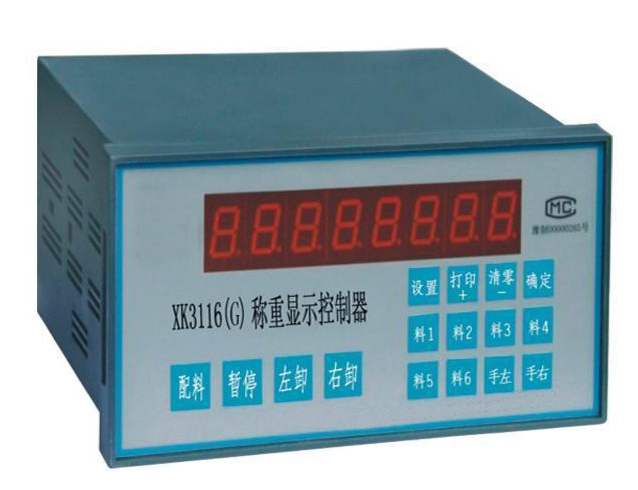

[product introduction] xk3116 weighing display controller adopts high-speed and high-precision A / D conversion and single-chip microcomputer control technology to intelligently process the signal of resistance strain type weighing sensor, automatically track the zero point of the system, display the weight of materials in real time, automatically correct the drop of materials and output the fixed value control signal.

The product is easy to operate and maintain. It can be flexibly configured according to the needs of users. It can be applied to a variety of electronic weighing and batching control systems.

[technical parameters]

Power supply: AC220V ± 10%

Power consumption: ≤ 5W

Working temperature: 0-40 ℃

Working humidity: < 85% relative humidity (no condensate)

Environmental conditions: no rain, sun and other dirt spraying

Altitude: ≤ 1000M

Weighing range: according to the sensor specification, it can be set by the user

Sensor Excitation Voltage 5V, high current 100mA

Instrument sampling frequency: 50 times / S

Division value signal: 0.6 μ V / D

Display accuracy: 1D

Display unit: kg

Accuracy class: Ш

Batching accuracy: 2% (full range)

Types of materials: C4 type 1-4; C type 1-6

Unloading mode 1: one way unloading

Unloading mode 2: bidirectional unloading

Unloading mode 3: one way unloading and then left and right splitting
