[product introduction]

The top panel of pld1200 three bin aggregate batching machine can be reduced or removed as required, which can greatly reduce the labor intensity of loading part and increase the convenience of construction. The capacity of the weighing hopper is 1200L, each capacity of the storage hopper is 3 cubic meters, the productivity is 60 cubic meters per hour, and the batching accuracy is ± 2%; the maximum weighing value is 3000kg; the batching types are 2 to 4. The equipment has the advantages of coarse and fine weighing, high weighing accuracy, excellent weighing sensor, accurate and stable weighing, reasonable overall structure, strong rigidity and beautiful appearance, stable transportation and normal feeding, which is the ideal choice for the batching equipment in the concrete mixing station!

[performance features]

1. The machine body can be arranged in a split structure to facilitate the loading of various materials.

2. It can automatically complete the batching of various materials according to the concrete proportion set by the user.

3. It is convenient and practical to synthesize different specifications of mixing station with corresponding concrete mixing unit.

This series of products have many structural forms, flexible combination, high weighing accuracy, simple operation and high degree of automation. The cost of the batching machine is only 1 / 2-1 / 3 of that of the mixing plant of the same specification, and it is very convenient to move and install. It is an ideal equipment for producing high-quality concrete on site.

1. It is divided into two buckets (bin), three buckets (bin) and four buckets (bin) according to the grading number of materials

2. According to the matched Mixer Model: pl (d) 800, 1200, 1600, 2400, 3200

3. It can be divided into: cumulative measurement for each material and separate measurement for each material

4. It can be divided into belt type and cylinder type according to the batching control mode

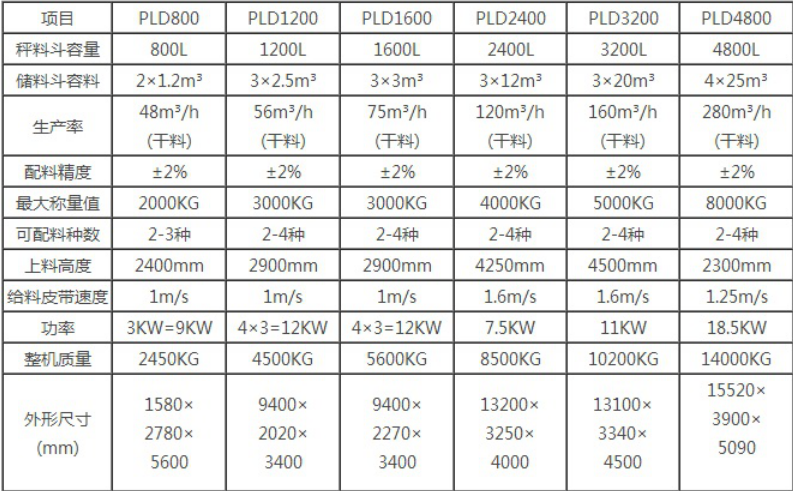

[technical parameters]
