[product introduction]

The capacity of the batching hopper of pld3200 concrete batching machine is 3200l, the batching types are 2-5, the theoretical productivity is 160m3 / h, the maximum weighing value is 5000kg, the feeding height is 2300mm, and the feeding belt speed is 1.25m/s. PLD series adopts the sand and stone batching device loaded by loader or belt conveyor, which can be used together with cement bin and other equipment, with various types of mixers and other metering devices, and can be combined into a full-automatic and semi-automatic mixing station, which can effectively ensure the accuracy of cement, sand, stone and other mix proportion, and further improves the efficiency of electronic weighing system Accuracy of weighing. The top panel of the batching machine can be reduced or removed as required, which can greatly reduce the labor intensity of the feeding part and increase the convenience of construction. The equipment of concrete batching machine has high weighing accuracy, fine performance weighing sensor, accurate and stable weighing, reasonable overall structure, strong rigidity and beautiful appearance, stable transportation and normal feeding; the head of belt machine is equipped with a retaining cover to effectively prevent sprinkling; the tail is equipped with a screw tensioning device, which can adjust the belt tension at any time, convenient and fast; the side of sand bin and sand scale bucket Wall, equipped with vibrators, is conducive to rapid weighing and unloading and other advantages, is an ideal batching equipment for large-scale concrete mixing plant!

PLD series batching machine can be combined with JS series concrete mixing machine to form a simple and high efficiency concrete mixing station, which is suitable for large and medium-sized hydropower projects, construction sites and concrete prefabricated component plants. It is an ideal equipment to improve production efficiency, reduce labor intensity and ensure concrete quality.

The machine has the advantages of reasonable layout, compact structure, simple operation, accurate ingredients, reliable control, etc.

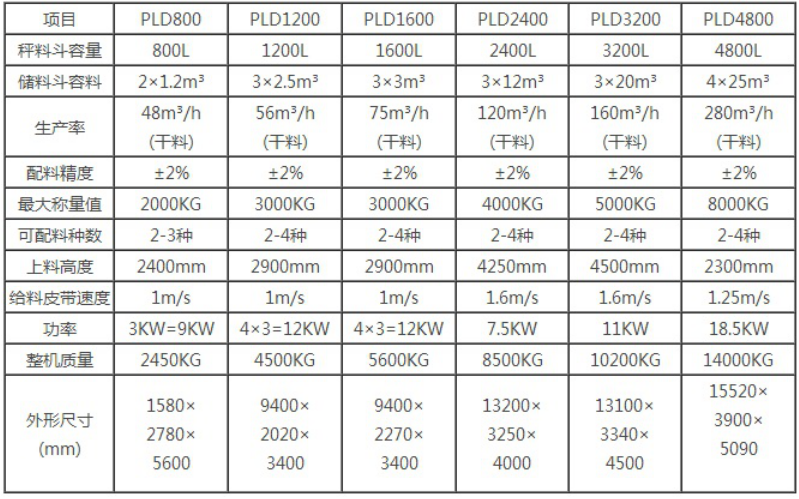

[technical parameters]
